PRODUCT: VR - 201
Engineered fiberglass composite giving high metal-to-fiber bonding strength for low pressure pipeline. Repairs old and highly corroded pipeline without the need of replacing them, saving time and un-necessary shut-down. It is ideal for low sensitive industry like water resource and others.
Engineered fiberglass composite giving high metal-to-fiber bonding strength for low pressure pipeline. Repairs old and highly corroded pipeline without the need of replacing them, saving time and un-necessary shut-down. It is ideal for low sensitive industry like water resource and others.
| Title | Info |
|---|---|
| Layer Thickness (6 layers) | 3.5 mm |
| Tensile Modulus (Circumferential) | 11.32 GPa |
| Tensile Modulus (Axial) | 11.28 GPa |
| Tensile Strength (Circumferential) | 232 MPa |
| Tensile Strength(Axial) | 230 MPa |
| Poisson’s Ratio (Circumferential) | 0.30 |
| Poisson’s Ratio (Axial) | 0.28 |
| Service Temperature Range | -30 C to 150 C |
| Lap Shear Strength to steel | 9.81 MPa |
| Barcol/Shore Hardness | 52.30 shore D |
| Title | Info |
|---|---|
| ½’ to 48’ In-Situ Repair Leaking Defect Pipe Size | Up to 25 mm dia |
| ½’ to 48’ Ex-Situ Repair Leaking Defect Pipe Size | Any size |

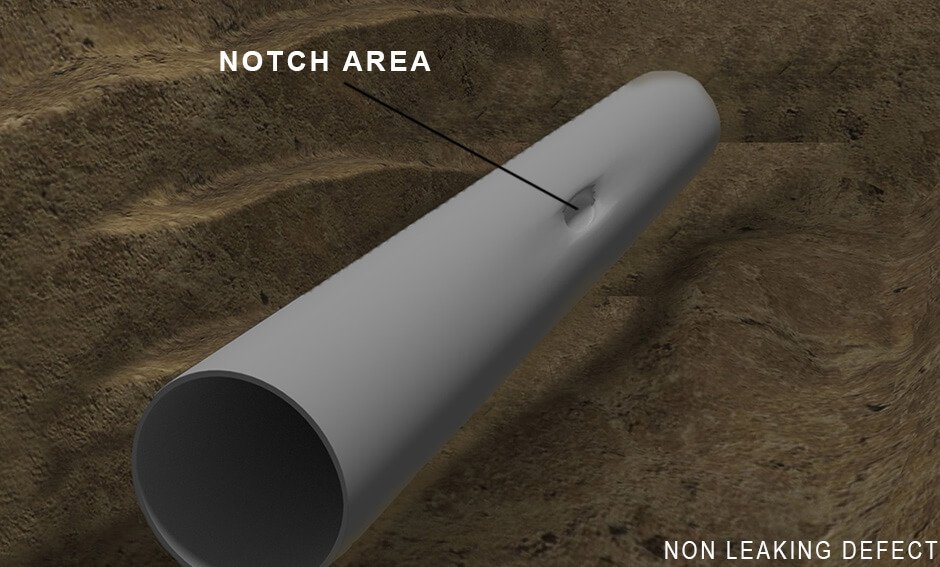

| ½’ to 48’ Part wall Loss Pipe Operating Pressure | 350 bars |
| ½’ to 48’ Through wall defect Pipe Operating Pressure | 70 bars |
