PRODUCT: VR - 101

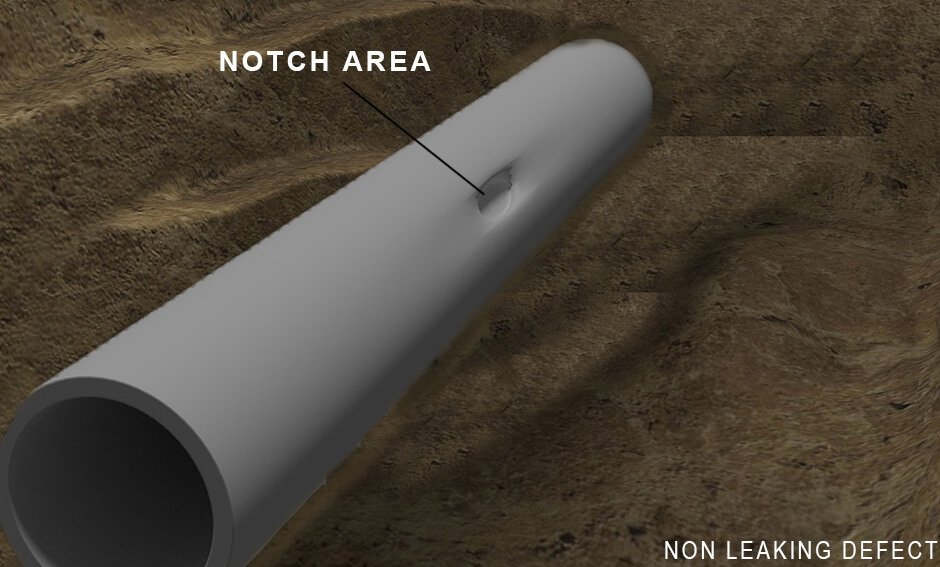

Uniquely designed for HIGH PRESSURE transmission pipeline providing high strength. Designed to rehabilitate pipelines with pitting corrosion, up to 80% wall loss, dents, gauges and other non-leaking defects to its initial strength increasing the lifetime and durability of pipeline without any time consuming and expensive shut-down. It is Ideal for sensitive industry like Oil and Gas, Pharmaceutical, Fertilizer etc. The repair can be performed in live condition and it is of permanent nature complying ISO 24817 and ASME PCC-2 standards.
Uniquely designed for HIGH PRESSURE transmission pipeline providing high strength. Designed to rehabilitate pipelines with pitting corrosion, up to 80% wall loss, dents, gauges and other non-leaking defects to its initial strength increasing the lifetime and durability of pipeline without any time consuming and expensive shut-down. It is Ideal for sensitive industry like Oil and Gas, Pharmaceutical, Fertilizer etc. The repair can be performed in live condition and it is of permanent nature complying ISO 24817 and ASME PCC-2 standards.
| Title | Info |
|---|---|
| Layer Thickness (6 layers) | 3.5 mm |
| Tensile Modulus (Circumferential) | 11.32 GPa |
| Tensile Modulus (Axial) | 11.28 GPa |
| Tensile Strength (Circumferential) | 232 MPa |
| Tensile Strength(Axial) | 230 MPa |
| Poisson’s Ratio (Circumferential) | 0.30 |
| Poisson’s Ratio (Axial) | 0.28 |
| Service Temperature Range | -30 C to 150 C |
| Lap Shear Strength to steel | 9.81 MPa |
| Barcol/Shore Hardness | 52.30 shore D |
| Title | Info |
|---|---|
| ½’ to 48’ In-Situ Repair Leaking Defect Pipe Size | Up to 25 mm dia |
| ½’ to 48’ Ex-Situ Repair Leaking Defect Pipe Size | Any size |
| ½’ to 48’ Part wall Loss Pipe Operating Pressure | 350 bars |
| ½’ to 48’ Through wall defect Pipe Operating Pressure | 70 bars |
