PRODUCT: VLR - 301

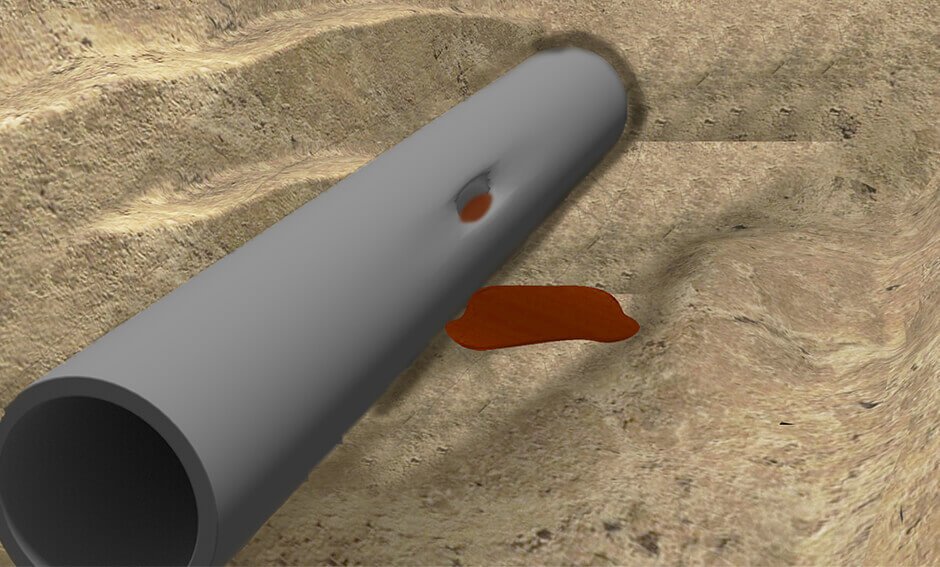

Designed to repair through wall defect of any shape and area. The preform can be tailor-fit to the size of the defect and a permanent repair solution can be devised. It can work where the pipe operating pressure is up to 60-70 bars.
Designed to repair through wall defect of any shape and area. The preform can be tailor-fit to the size of the defect and a permanent repair solution can be devised. It can work where the pipe operating pressure is up to 60-70 bars.
Title | Info |
---|---|
Layer Thickness (6 layers) | 3.5 mm |
Tensile Modulus (Circumferential) | 11.32 GPa |
Tensile Modulus (Axial) | 11.28 GPa |
Tensile Strength (Circumferential) | 232 MPa |
Tensile Strength(Axial) | 230 MPa |
Poisson’s Ratio (Circumferential) | 0.30 |
Poisson’s Ratio (Axial) | 0.28 |
Service Temperature Range | -30 C to 150 C |
Lap Shear Strength to steel | 9.81 MPa |
Barcol/Shore Hardness | 52.30 shore D |
Title | Info |
---|---|
½’ to 48’ In-Situ Repair Leaking Defect Pipe Size | Up to 25 mm dia |
½’ to 48’ Ex-Situ Repair Leaking Defect Pipe Size | Any size |
½’ to 48’ Part wall Loss Pipe Operating Pressure | 350 bars |
½’ to 48’ Through wall defect Pipe Operating Pressure | 70 bars |
