PRODUCT: VAWS - 201

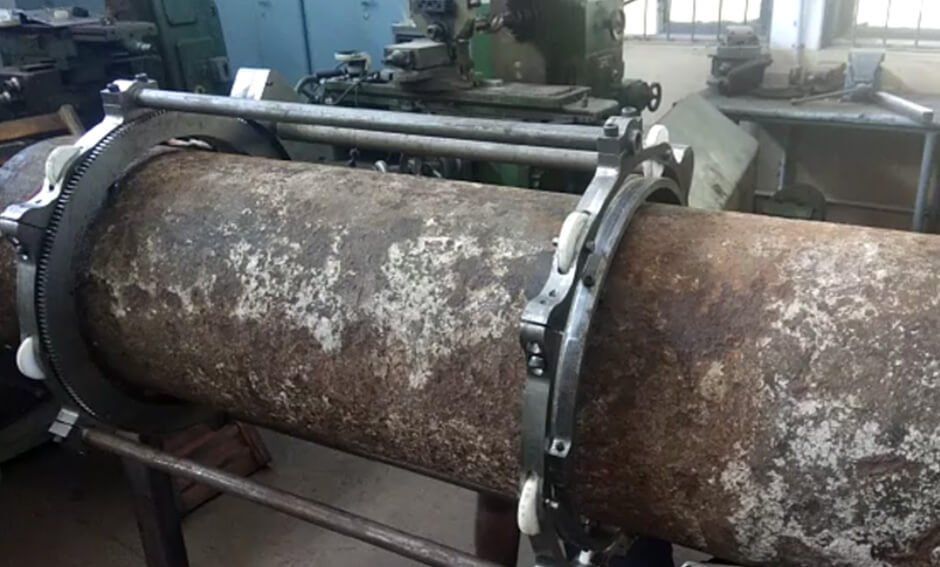

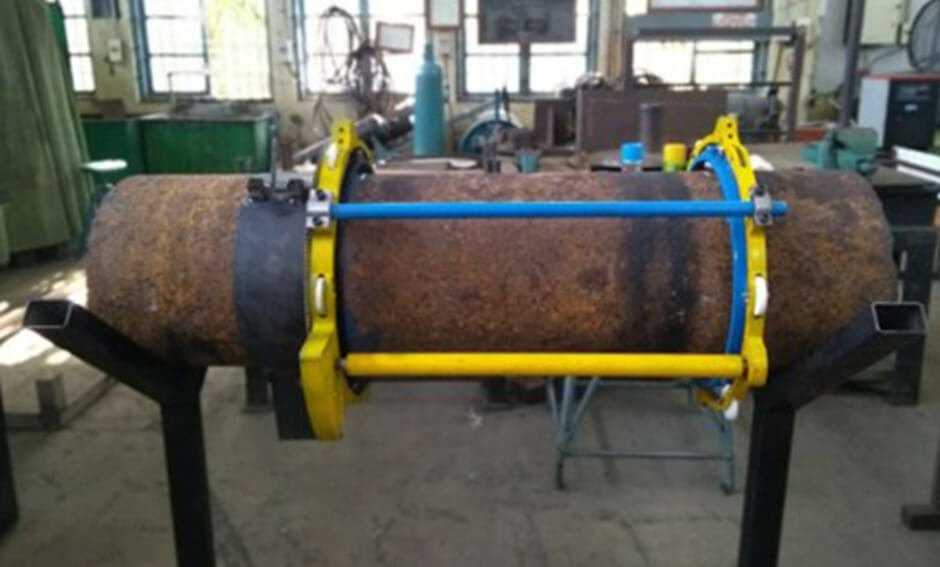

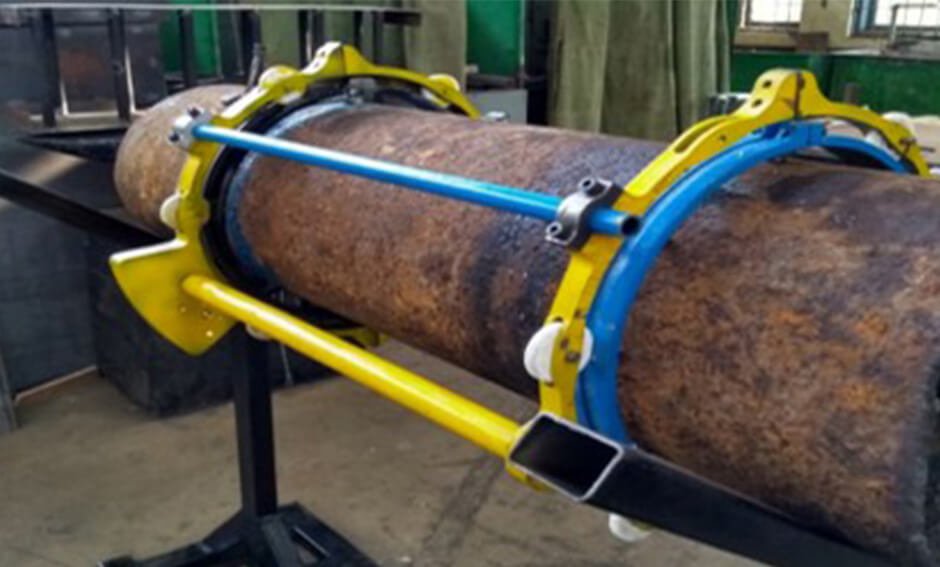

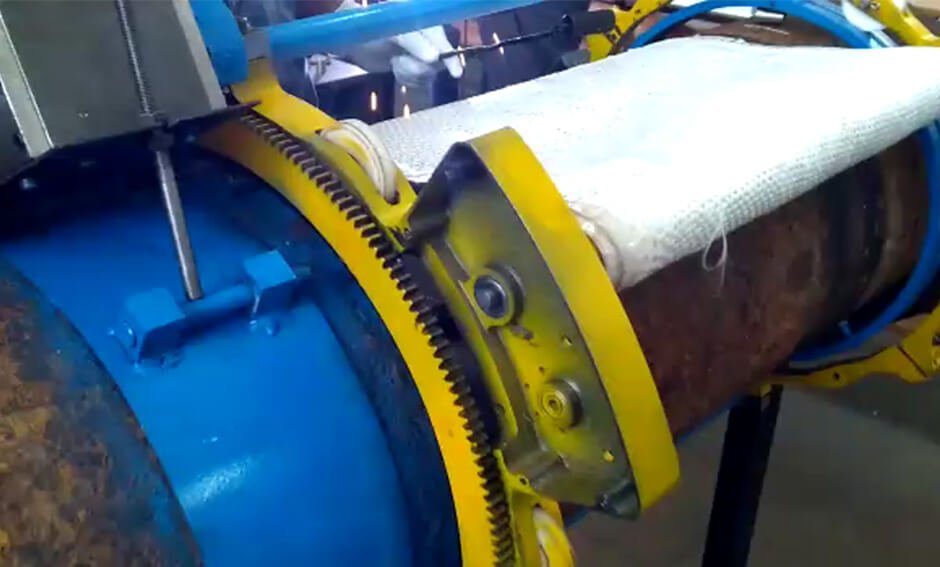

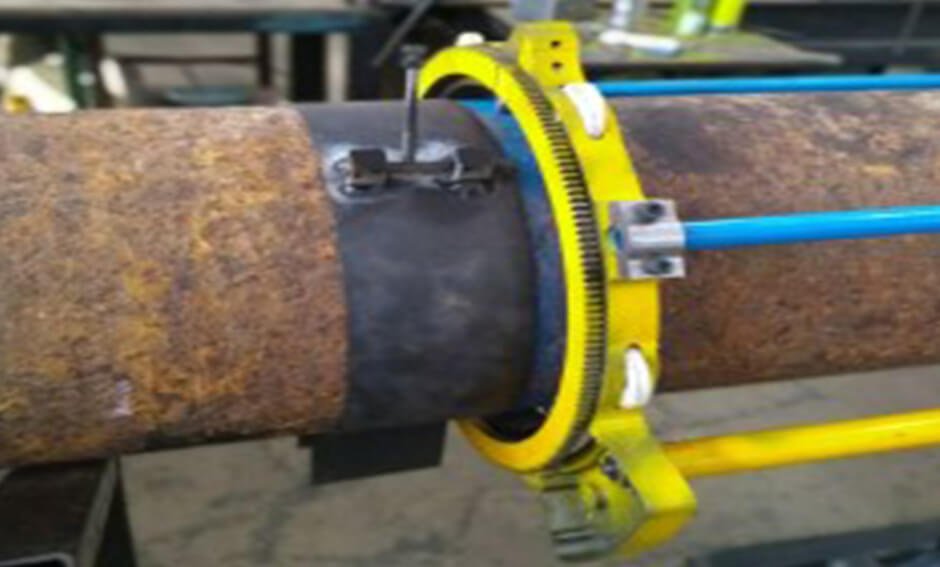

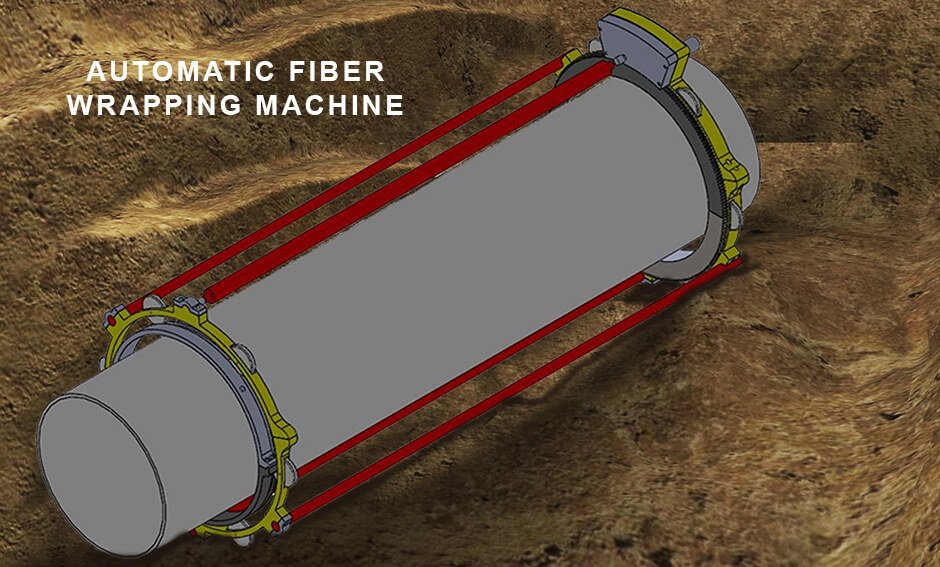

Designed to repair large diameter and/or length pipeline, where repairing it manually with hand-lay becomes challenging and time-taking by using Automatic State-of-the Art Wrapping Machine. This fully automatic wrapping machine can repair the pipeline without any human intervention giving high accuracy and repair finish saving time and money. The same machine can be deployed for coating pipelines to prevent corrosion.
Designed to repair large diameter and/or length pipeline, where repairing it manually with hand-lay becomes challenging and time-taking by using Automatic State-of-the Art Wrapping Machine. This fully automatic wrapping machine can repair the pipeline without any human intervention giving high accuracy and repair finish saving time and money. The same machine can be deployed for coating pipelines to prevent corrosion.
Title | Info |
---|---|
Layer Thickness (6 layers) | 3.5 mm |
Tensile Modulus (Circumferential) | 11.32 GPa |
Tensile Modulus (Axial) | 11.28 GPa |
Tensile Strength (Circumferential) | 232 MPa |
Tensile Strength(Axial) | 230 MPa |
Poisson’s Ratio (Circumferential) | 0.30 |
Poisson’s Ratio (Axial) | 0.28 |
Service Temperature Range | -30 C to 150 C |
Lap Shear Strength to steel | 9.81 MPa |
Barcol/Shore Hardness | 52.30 shore D |
Title | Info |
---|---|
½’ to 48’ In-Situ Repair Leaking Defect Pipe Size | Up to 25 mm dia |
½’ to 48’ Ex-Situ Repair Leaking Defect Pipe Size | Any size |
½’ to 48’ Part wall Loss Pipe Operating Pressure | 350 bars |
½’ to 48’ Through wall defect Pipe Operating Pressure | 70 bars |
